Weatherproof 300W 12V DC IP67 LED Driver - OTTER7 - Cla
was
A$285.04
Special Price
A$259.13

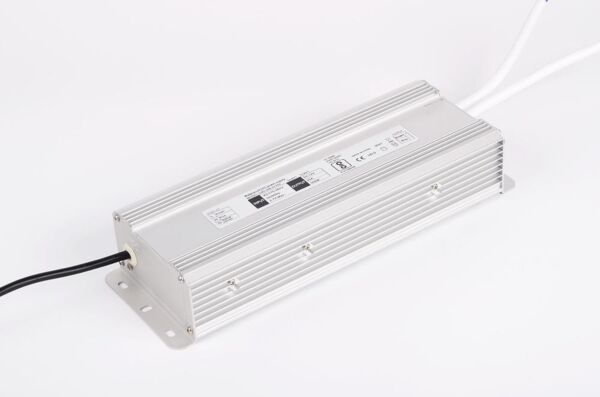

Weatherproof 300W 12V DC IP67 LED Driver - OTTER7
Availability:
In stock
SKU
CLA-OTTER7
A LED Driver is an electrical device; used to power a light-emitting diode (LED); that protects LEDs by stabilizing the quantity of incoming electrical voltage and current to make sure they don't surpass the maximum voltage rating.
Complex current source circuits require a LED driver when driving high-power LEDs for illumination to achieve correct current regulation.
A LED driver responds to the changing needs of the LED; or LED circuit; by providing a constant quantity of power to the LED as its electrical properties change with temperature.
Without the proper driver; the LED may become too hot and unstable; therefore causing poor performance or failure.
Specifications
- Input voltage: 170-265V 50/60Hz
- 12V DC constant voltage LED driver
- Output voltage: 12V DC
- Wattage: 300W
- Current: 25A
- Load: 30W - 240W
- Minimum Load Per Cable: 30W
- Maximum Load Per Cable: 120W
- Short circuit; overload and thermal protection
- Built in Active PFC function
- Ambient temperature: -30 to 50 degreeC
- Flex & plug included: 1.2m
- IP rating: IP67
Dimensions
- Height: 50mm
- Width: 95mm
- Length: 275mm
Click to view technical specification:
Complex current source circuits require a LED driver when driving high-power LEDs for illumination to achieve correct current regulation.
A LED driver responds to the changing needs of the LED; or LED circuit; by providing a constant quantity of power to the LED as its electrical properties change with temperature.
Without the proper driver; the LED may become too hot and unstable; therefore causing poor performance or failure.
Specifications
- Input voltage: 170-265V 50/60Hz
- 12V DC constant voltage LED driver
- Output voltage: 12V DC
- Wattage: 300W
- Current: 25A
- Load: 30W - 240W
- Minimum Load Per Cable: 30W
- Maximum Load Per Cable: 120W
- Short circuit; overload and thermal protection
- Built in Active PFC function
- Ambient temperature: -30 to 50 degreeC
- Flex & plug included: 1.2m
- IP rating: IP67
Dimensions
- Height: 50mm
- Width: 95mm
- Length: 275mm
Click to view technical specification:
