Step Lite Louvre Square 12V / 24V Copper - SLLUSQ/COP - Hza

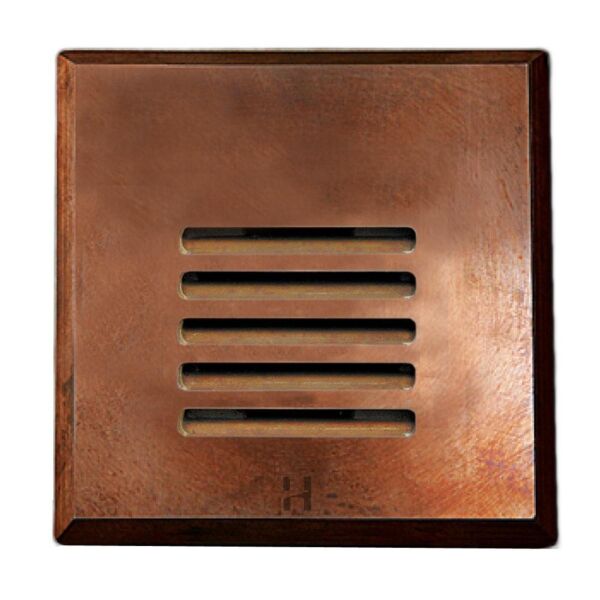

Step Lite Louvre Square 12V / 24V Copper - SLLUSQ/COP
Availability:
In stock
SKU
HZA-SLLUSQ/COP
Features
The Step Lite Louvre Square is designed with a 88mm (3 1/2?) low-profile flange and recessed body for flush mounting into masonry; stone or wood; providing illumination of steps and low level features; for exterior paved areas. The 45 degree louvre eliminates all upward light; providing an excellent glare-free illuminating effect.
When a HUNZA mounting canister is used there are no mounting holes in the flange (canisters must be specified when ordering).
The luminaire is machined from a choice of solid copper or 316 stainless steel with a clear; tempered; stepped glass lens and high temperature silicon gaskets.
Specifications
- Input Voltage: 12V / 24V
- Bulb base: GU5.3
- Bulb type: MR16
- Energy efficient: Energy saving LED Ready
- IP rating: IP66
- Remote driver / transformer is required to operate this unit
Dimensions
- Width: 88mm x 88mm
- Cutout: 63.5mm
Click to view technical specification:
The Step Lite Louvre Square is designed with a 88mm (3 1/2?) low-profile flange and recessed body for flush mounting into masonry; stone or wood; providing illumination of steps and low level features; for exterior paved areas. The 45 degree louvre eliminates all upward light; providing an excellent glare-free illuminating effect.
When a HUNZA mounting canister is used there are no mounting holes in the flange (canisters must be specified when ordering).
The luminaire is machined from a choice of solid copper or 316 stainless steel with a clear; tempered; stepped glass lens and high temperature silicon gaskets.
Specifications
- Input Voltage: 12V / 24V
- Bulb base: GU5.3
- Bulb type: MR16
- Energy efficient: Energy saving LED Ready
- IP rating: IP66
- Remote driver / transformer is required to operate this unit
Dimensions
- Width: 88mm x 88mm
- Cutout: 63.5mm
Click to view technical specification:
