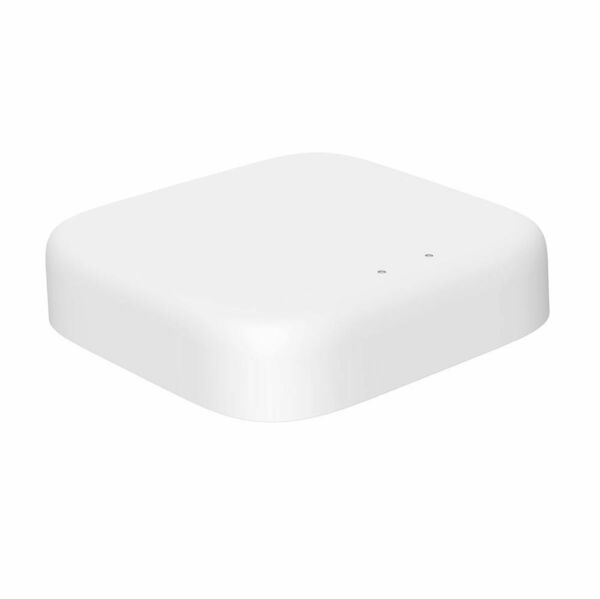

Smart Bluetooth Mesh Gateway - 21439/05 - Bri
was
A$74.59
Special Price
A$67.81
Smart Bluetooth Mesh Gateway - 21439/05
Availability:
In stock
SKU
BRI-21439/05
Bluetooth mesh is a many to many broadcast structure that allows you to connect devices using a Bluetooth network that can communicate with each other to form the mesh network.
The Smart Mesh Gateway acts as the heart of the system; connecting all of your BrilliantSmart Mesh items to your network using one WiFi point allowing you to control them individually or in groups using the BrilliantSmart app.
Create a mesh network for up to 64 Bluetooth mesh devices using a single WiFi connection.
Increases the amount of smart devices without having to upgrade your network.
Each mesh device provides extended connection range. Eliminates network blackspots.
Suitable for home builds and large scale applications. Easy to connect; group and control devices.
Combine additional gateways; each gateway connects up to 64 Bluetooth Mesh devices.
Specifications
- Operating Voltage: 240V / 50Hz
- Power source: 5V DC; 0.5 Amp
- Class: Class II (2)
- Mesh System: Yes
- Wireless Bands: 2.4Ghz
- Antennae: 2EA (2.4GHz: 1EA; BT: 1EA)
- Bluetooth range: 10-15m
- Ports: Micro USB (Power)
- Construction: Polycarbonate
- Ingress protection: IP20 (Indoor only)
- LED Indicator: Blue (Bluetooth connected); Red (WiFi connected)
- Warranty: 1 year replacement
- Box Includes: 1 x Mesh Gateway; 1 x AC/DC Power Supply; 1 x USB to Micro USB (1.2m)
- Connectivity Info: WiFi: IEEE802.11b/g/n; 2.4GHz; Mac Encryption; WEP/WAPI/TKIP/AES; Bluetooth: BT4.2
- Device Requirements: iOS 9.0 or higher; Android 5.0 or higher
- Standards: AS/NZS 60950
Dimensions
- Width: 61.5mm x 61.5mm
Click to view technical specifications:
The Smart Mesh Gateway acts as the heart of the system; connecting all of your BrilliantSmart Mesh items to your network using one WiFi point allowing you to control them individually or in groups using the BrilliantSmart app.
Create a mesh network for up to 64 Bluetooth mesh devices using a single WiFi connection.
Increases the amount of smart devices without having to upgrade your network.
Each mesh device provides extended connection range. Eliminates network blackspots.
Suitable for home builds and large scale applications. Easy to connect; group and control devices.
Combine additional gateways; each gateway connects up to 64 Bluetooth Mesh devices.
Specifications
- Operating Voltage: 240V / 50Hz
- Power source: 5V DC; 0.5 Amp
- Class: Class II (2)
- Mesh System: Yes
- Wireless Bands: 2.4Ghz
- Antennae: 2EA (2.4GHz: 1EA; BT: 1EA)
- Bluetooth range: 10-15m
- Ports: Micro USB (Power)
- Construction: Polycarbonate
- Ingress protection: IP20 (Indoor only)
- LED Indicator: Blue (Bluetooth connected); Red (WiFi connected)
- Warranty: 1 year replacement
- Box Includes: 1 x Mesh Gateway; 1 x AC/DC Power Supply; 1 x USB to Micro USB (1.2m)
- Connectivity Info: WiFi: IEEE802.11b/g/n; 2.4GHz; Mac Encryption; WEP/WAPI/TKIP/AES; Bluetooth: BT4.2
- Device Requirements: iOS 9.0 or higher; Android 5.0 or higher
- Standards: AS/NZS 60950
Dimensions
- Width: 61.5mm x 61.5mm
Click to view technical specifications:
