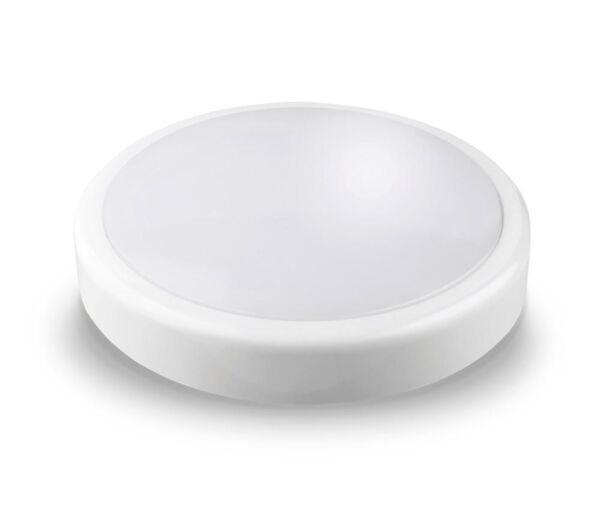

Polycarbonate 14W LED Bunker Light With Corridor Function White / Tri-Colour - AT5709/WH/TRI/CF - Atl

The AT5709 Series 14W LED Bunker Light has been designed to offer a versatile all-in-one product for exterior walls or ceilings.

Colour temperature can be selected from warm white; cool white to daylight with a switchable dip switch depending on the desired colour temperature.

Smart installation features have been incorporated for quicker and easier installation. Wall or ceiling mountable.

Robust in design an IP65 polycarbonate construction to be able to withstand the harsh coastal climate. Backed by our 3 Year Replacement Warranty.

Specifications
- Input Voltage: 240V
- Wattage: 14W
- IP Rating: IP65
- Dimmable: No
- Lamp Colour Temperature: 3000K - 4000K - 5000K (Tri Colour)
- Material: Polycarbonate
- Beam Angle: 120 degree
- Lumen Output: 3000K - 1305lm / 4000K - 1390lm / 5000K - 1395lm
- Warranty Period: 3Y
- Warranty Type: Replacement

Sensor functions

ON-OFF Function
With insufficient ambient light; the sensor switches on the lamp when motion is detected.

3 Step dimming function
When there is insufficient light the sensor switches on the lamp when motion is detected. After hold time; the sensor dims the lamp at a low light level if no new motion trigger.

After stand-by period; the sensor switches off the lamp if no motion is detected in its detection zone.

Setting sensor
By selecting the combination on the DIP switch; sensor data can be precisely set for each specific application.

Dimensions
- Diameter: 320mm
- Projection: 75mm

Click to view technical specifications
