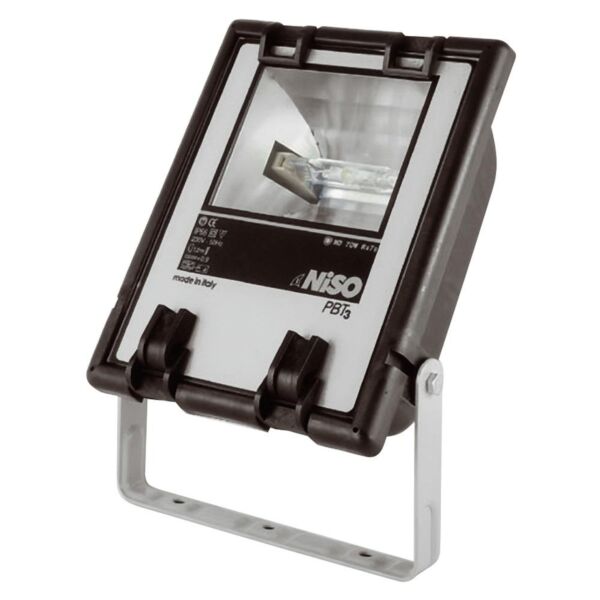

Metal Halide 70W Exterior Symmetrical Floodlight - NISO70MH - Crn

Features
? Polycarbonate housing
? Tempered safety glass
? Polished aluminium reflector
? Black thermo plastic black frame
? Front opening for lamp replacement
? Mounting bracket
? Integral control gear
? Includes lamp
? Weatherproof to IP66
? Includes 70watt 4000K tubular double ended lamp

Materials
? Thermoplastic housing P.B.T. F.V. 30%
? 99.9 aluminium reflector
? Silicon foam seal cast-in seating
? Screen printed tempered glass; 4mm for Niso 70W and 5mm for other types
? Stainless steel bracket and plastic nut caps
? Goniometric device for light orientation
? 3mm thick aluminium plate accessory holder
? Stainless steel screws
? 66 polyamide cable gland V0 self-extinguishing IP66: PG9 (cable diam. 5-8mm) PG11 (cable diam. 9-11mm)

Power Supply
? Voltage: 230V-240V 50HZ
? Gear included with 0.9 power factor correction capacitor; igniter and ballast
? Stiff wires 1.75mm? section with glass silicon sheathing
? Terminals 2p for a maximum conductor section of 6mm?
? Class II insulation - does not require earthing

Easy Maintenance
? The front opening clip closure system facilitates maintenance as the safety glass does not have to be supported.

Precise Lighting
? The floodlights can be precisely adjusted with the graduated scale on the fixture handle.

Compliance
? Ta35; IP66; Non-Dimmable

Applications
? A high quality range of floodlights for lighting of parks; car parks; yards; monuments; sport and recreation areas.
? Ideal for security; exterior storage spaces; warehouse and architectural features

Dimensions
- Height: 296mm
- Width: 260mm
- Diameter: 100mm

Code
25753
