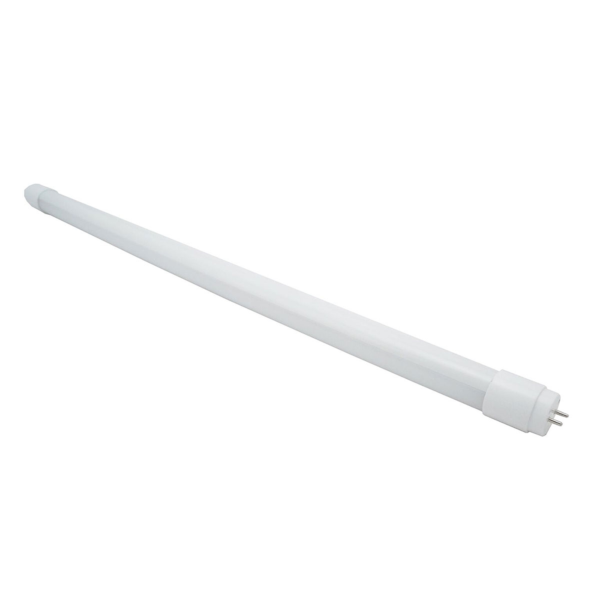

LED T8 18W Tube Warm White - PT818W5FT - Cla

Features
The LED tube is an affordable LED solution suitable for replacing T8 fluorescent lamps.

The product provides a natural lighting effects for use in general lighting applications; as well as instant energy savings - an environmentally friendly solution

Specifications:
- Input voltage: 200-260V AC 50/60Hz
- Wattage: 18W
- Colour Temperature: 3000K
- Lumens: 1620 Lumens
- Beam: 120 degree
- CRI: 80
- SMD2835 LED chips
- Power factor: >=0.9
- Life time: 25;000hrs
- PC heat sink
- For indoor use only
- Ambient temp: -20 to 40 degreeC
- Not suitable for dimming
- Suitable to work with sensor
- 2 year replacement warrant

Dimensions:
- Length: 1507mm
- Diameter: 28mm

INSTALLATION INSTRUCTIONS
Wiring example of a single circuit luminaire with magnetic or electronic ballast please see below in the technical specifications

Click to view technical specification:
