LED 6W MR16 Globe Warm White - MR1601A - Cla
was
A$10.35
Special Price
A$9.41

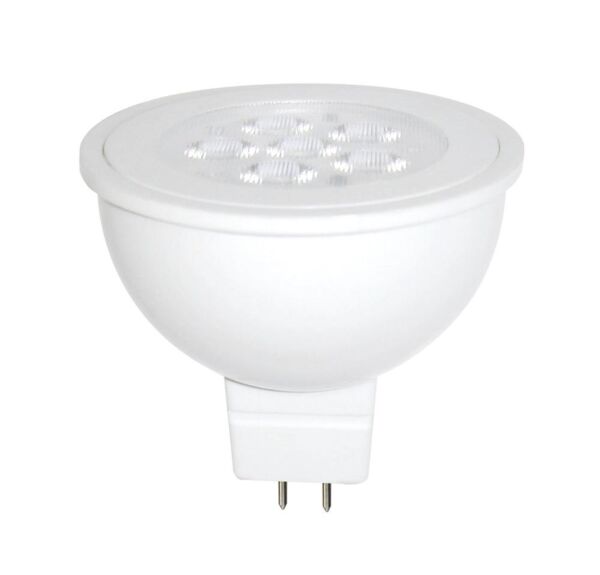

LED 6W MR16 Globe Warm White - MR1601A
Availability:
In stock
SKU
CLA-MR1601A
Features
- High efficiency LED chips
- Directly replace MR16 halogen lamp
- 12V AC or DC driver required
- Suits most halogen MR16 fittings
Specifications
- Input voltage: 12V AC/DC
- Driver input voltage: 12V 50/60Hz
- Driver output voltage: 18V
- Driver input current: 1100mA
- Driver output current: 260mA
- Driver inrush current: 30A
- Wattage: 6W
- Colour Temperature: 3000K (Warm White)
- Lumens: 480 Lumens
- Beam: 38 degree
- Housing & heat sink: aluminium & plastic
- LED chips: 6pcs SMD2835
- Wattage: 6W (=40W incandescent globe)
- Power factor: >=0.5
- Ambient temp: -15 to 40 degreeC
- Not suitable for dimming
- Suitable for 2 way switching
- Suitable for use with 3 wire PIR or Microwave sensors
- Remote constant voltage AC/DC control gear required
Recommended Transformers/Drivers
- LUXMAN ETH50.302VA (50W) Transformer 2-6 pieces
- CLA CLADR12W 1 piece
- CLA DRIV1 1 piece
- CLA OTTER1 1 piece
- OSRAM ET-REDBACK (20-60W) 4-9 pieces
- ATCO Possum (20-60W) 4-9 pieces
Dimensions
- Diameter: 50mm
- Height: 47.7mm
Click to view technical specification:
- High efficiency LED chips
- Directly replace MR16 halogen lamp
- 12V AC or DC driver required
- Suits most halogen MR16 fittings
Specifications
- Input voltage: 12V AC/DC
- Driver input voltage: 12V 50/60Hz
- Driver output voltage: 18V
- Driver input current: 1100mA
- Driver output current: 260mA
- Driver inrush current: 30A
- Wattage: 6W
- Colour Temperature: 3000K (Warm White)
- Lumens: 480 Lumens
- Beam: 38 degree
- Housing & heat sink: aluminium & plastic
- LED chips: 6pcs SMD2835
- Wattage: 6W (=40W incandescent globe)
- Power factor: >=0.5
- Ambient temp: -15 to 40 degreeC
- Not suitable for dimming
- Suitable for 2 way switching
- Suitable for use with 3 wire PIR or Microwave sensors
- Remote constant voltage AC/DC control gear required
Recommended Transformers/Drivers
- LUXMAN ETH50.302VA (50W) Transformer 2-6 pieces
- CLA CLADR12W 1 piece
- CLA DRIV1 1 piece
- CLA OTTER1 1 piece
- OSRAM ET-REDBACK (20-60W) 4-9 pieces
- ATCO Possum (20-60W) 4-9 pieces
Dimensions
- Diameter: 50mm
- Height: 47.7mm
Click to view technical specification:
Write Your Own Review
