Euro Step Lite Solid Eyelid 12V / 24V Copper - ESLS/COP - Hza
Euro Step Lite Solid Eyelid 12V / 24V Copper - ESLS/COP
Availability:
In stock
SKU
HZA-ESLS/COP
Features

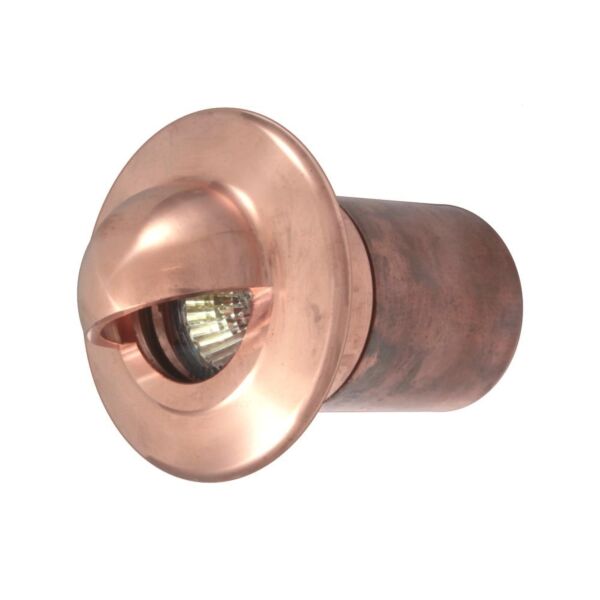

The Euro Step Lite Solid Eyelid is an extra compact luminaire designed for step lighting applications where the fixture needs to be very unobtrusive or concealed. The eyelid masks two thirds of the lamp; which eliminates all upward light.
HUNZA Euro fixtures use a miniature MR11 lamp to achieve the compact dimensions but are still able to provide excellent illumination.
The Euro Step Lite is designed for recessed mounting into masonry; stone or wood and when the appropriate HUNZA mounting canister is specified there are no visible mounting screws (canisters must be specified when ordering).
Designed with a 69mm (2 3/4?) flange; a body machined from 45mm (1 3/4?) thick solid copper or 316 stainless steel and a clear tempered glass lens with high temperature silicon gaskets.
Specifications
- Input Voltage: 12V / 24V
- Bulb base: GU5.3
- Bulb type: MR16
- Energy efficient: Energy saving LED Ready
- IP rating: IP66
- Remote driver / transformer is required to operate this unit
Dimensions
- Diameter: 70mm
- Cutout: 44mm
Click to view technical specification:
The Euro Step Lite Solid Eyelid is an extra compact luminaire designed for step lighting applications where the fixture needs to be very unobtrusive or concealed. The eyelid masks two thirds of the lamp; which eliminates all upward light.
HUNZA Euro fixtures use a miniature MR11 lamp to achieve the compact dimensions but are still able to provide excellent illumination.
The Euro Step Lite is designed for recessed mounting into masonry; stone or wood and when the appropriate HUNZA mounting canister is specified there are no visible mounting screws (canisters must be specified when ordering).
Designed with a 69mm (2 3/4?) flange; a body machined from 45mm (1 3/4?) thick solid copper or 316 stainless steel and a clear tempered glass lens with high temperature silicon gaskets.
Specifications
- Input Voltage: 12V / 24V
- Bulb base: GU5.3
- Bulb type: MR16
- Energy efficient: Energy saving LED Ready
- IP rating: IP66
- Remote driver / transformer is required to operate this unit
Dimensions
- Diameter: 70mm
- Cutout: 44mm
Click to view technical specification:
