Constant Voltage 20W Dimmable LED Driver - AT9605
Availability:
In stock
SKU
ATL-AT9605
Features

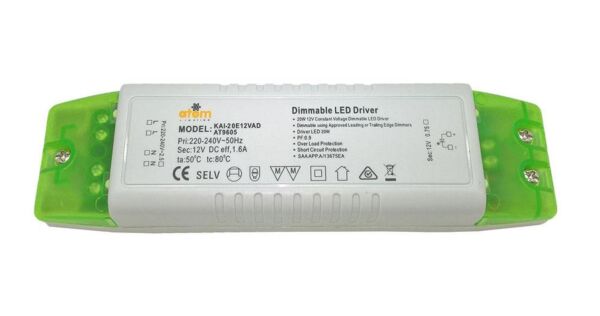

The Atom AT9605 Transformer is a Constant Voltage Dimmable LED Driver with up to 20W of draw at anyone time.
It has a standard input requirement of 220-240V AC at 50/60Hz and outputs a 12V DC with a maximum current of 1.67A.
It has Short Circuit Protection built in. Dimmable using approved Leading and Trailing edge dimmers.
Specifications:
- Order Code: 10762
- Input Voltage: 220-240V AC Input @ 50/60Hz
- Output Voltage: 12V DC Output @ 1.67A
- Dimmable: Yes
- Wattage: 20W Maximum Draw
- IP Rating: IP20
Dimensions
- Length: 145mm
- Height: 28mm
- Width: 38mm
Click to view technical specification:
The Atom AT9605 Transformer is a Constant Voltage Dimmable LED Driver with up to 20W of draw at anyone time.
It has a standard input requirement of 220-240V AC at 50/60Hz and outputs a 12V DC with a maximum current of 1.67A.
It has Short Circuit Protection built in. Dimmable using approved Leading and Trailing edge dimmers.
Specifications:
- Order Code: 10762
- Input Voltage: 220-240V AC Input @ 50/60Hz
- Output Voltage: 12V DC Output @ 1.67A
- Dimmable: Yes
- Wattage: 20W Maximum Draw
- IP Rating: IP20
Dimensions
- Length: 145mm
- Height: 28mm
- Width: 38mm
Click to view technical specification:
