Constant Voltage 12V 30W DC Dimmable LED Driver - DR-CV-30
Availability:
In stock
SKU
LQL-DR-CV-30
A LED Driver is an electrical device; used to power a light-emitting diode (LED); that protects LEDs by stabilizing the quantity of incoming electrical voltage and current to make sure they don't surpass the maximum voltage rating.
Complex current source circuits require a LED driver when driving high-power LEDs for illumination to achieve correct current regulation.
A LED driver responds to the changing needs of the LED; or LED circuit; by providing a constant quantity of power to the LED as its electrical properties change with temperature.

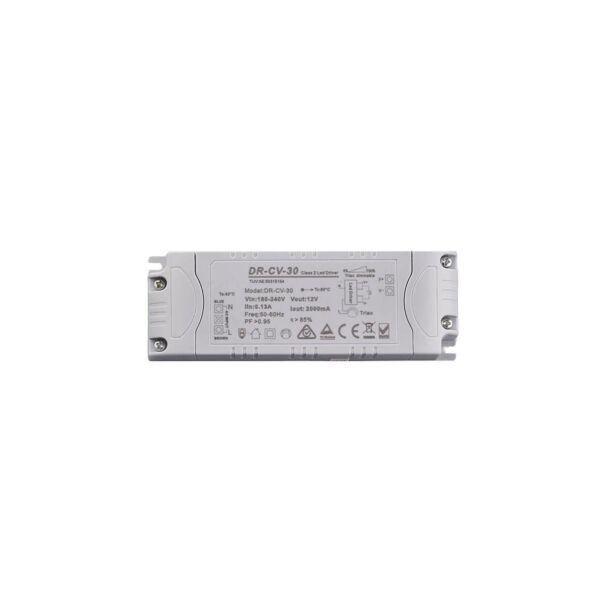

30 watt 12 Volt DC TRIAC dimmable constant voltage LED driver for powering our 12 Volt LED Filament light bulbs.
Specifications
- Input Voltage: 180V - 240V
- Output Voltage: 12V
- Wattage: 30W
- Power Factor: >0.95
- Output Current: 2000mA
- Operating Temperature: 30~45 degreeC
- Frequency: 50-60Hz
- Dimmable: Triac Dimming
- IP Rating: IP20
Dimensions
- 107mm x 20mm x 22mm
Complex current source circuits require a LED driver when driving high-power LEDs for illumination to achieve correct current regulation.
A LED driver responds to the changing needs of the LED; or LED circuit; by providing a constant quantity of power to the LED as its electrical properties change with temperature.
30 watt 12 Volt DC TRIAC dimmable constant voltage LED driver for powering our 12 Volt LED Filament light bulbs.
Specifications
- Input Voltage: 180V - 240V
- Output Voltage: 12V
- Wattage: 30W
- Power Factor: >0.95
- Output Current: 2000mA
- Operating Temperature: 30~45 degreeC
- Frequency: 50-60Hz
- Dimmable: Triac Dimming
- IP Rating: IP20
Dimensions
- 107mm x 20mm x 22mm
