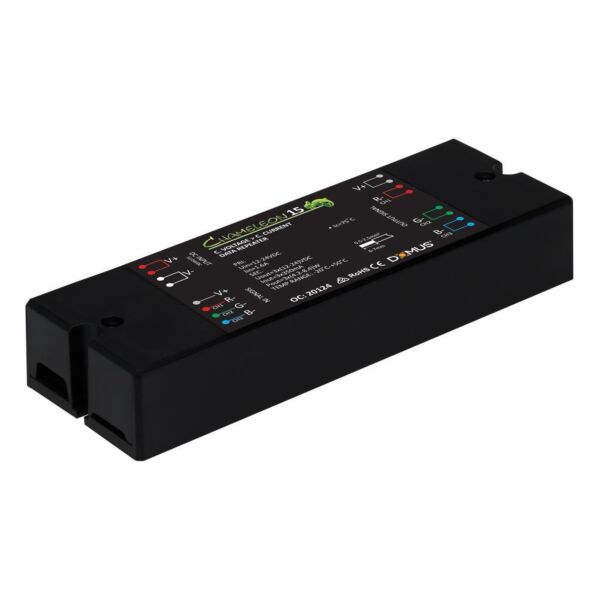

Chameleon-15 3 Channel LED Strip Controller - 20124 - Dom

Features
The CHAMELEON-15 is a 3 channel signal strength data repeater for constant current fixtures. The CHAMELEON-15 offers the ability to expand the signal strength generated by the master controller.

The CHAM-15 is able to accept a constant voltage PWM signal and output a 350mA constant current. This is particularly useful when using the LASER; SHINE; TWILITE and FLUID RGB colour changing luminaires offered in the Domus range.

Specifications
- Order Code: 20124
- Product Family: Chameleon
- Length (mm): 169MM
- Width (mm): 58MM
- Height (mm): 28MM
- Input Voltage: 12V-24V
- Current: 350MA
- Wiring: Series
- Application: Data Repeater
- Warranty Period: 3Y
- Warranty Type: Replacement
