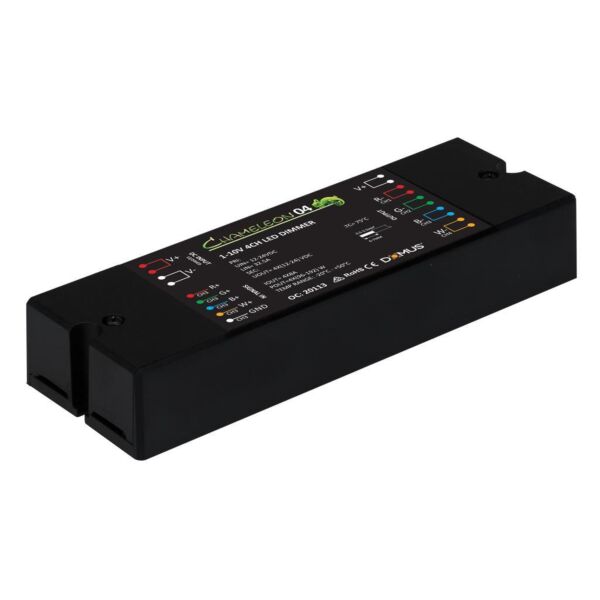

Chameleon-04 4 Channel RGBW LED Strip Controller - 20113 - Dom

Description:
The CHAMELEON-04 is an interface designed for 0-10V signals. Designed for use with constant voltage 12-24VDC lighting products the CHAMELEON-04 offers seamless integration between automation systems and luminaires. Accepts standard 0-10V signal generated from any automation system.

Featuring 4CH of dimming allowing control over RGB; RGBW or single colour LED lighting products. For manual dimming control for situations were an automation system is not used a resistive pot can be used. These low voltage 0-10V dimmers are designed to fit into standard HPM or Clipsal switch plates.

Specifications
- Order Code: 20113
- Product Family: Chameleon
- Length (mm): 169MM
- Width (mm): 58MM
- Height (mm): 28MM
- Input Voltage: 12V-24V
- Application: Controller
- Warranty Period: 3Y
- Warranty Type: Replacement

Click to view technical specification:
