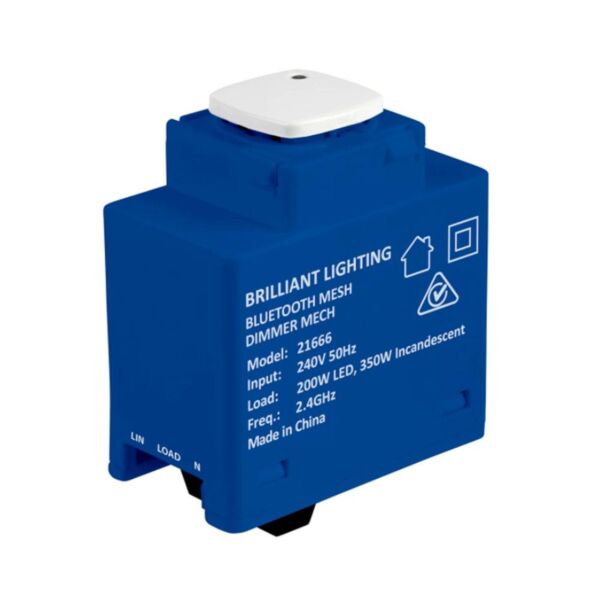

Bluetooth Mesh Dimmer Mech - 21666 - Bri

Bluetooth mesh is a many to many broadcast structure that allows you to connect devices using a Bluetooth network that can communicate with each other to form the mesh network. Smart push button lighting dimmer that allows remote operation from anywhere.

Make your dimmable lights smart by converting your current dimmer to our Bluetooth Mesh smart dimming module

Fits conveniently into the existing switch plate; including HPM; Clipsal and Vynco

Trailing edge dimmer suitable for most LED lighting products

Build schedules and timing to automate your lighting Create virtual automation looping without installing long cable runs*

Programmable minimum and maximum brightness level to avoid light flickering Incorporates on/off switching and dimming control into one mechanism

Soft start for improved lamp life Connects to other BrilliantSmart devices and other compatible products

Overheat and over-current protection

Manual push button is in perfect sync with app

Each mesh device provides extended connection range.

Eliminates network blackspots.

Control locally via Bluetooth on your phone or tablet or add a Mesh Gateway for greater functionality and automation.

Specifications
- Colour: Blue
- Control: BrilliantSmart app; On/Off Wall switch
- Construction: Flame retardant ABS for housing
- Input Voltage: 240V
- Connectivity Info: Bluetooth 4.2
- Dimmable: Yes
- Maximum Load: 200W LED; 350W Incandescent
- Warranty: 1Y
- Device Requirements: iOS 8.0 or higher; Android 4.1 or higher

Dimensions
- Height: 40mm
- Width: 22.5mm
- Depth: 49mm

Click to view technical specification:
